Starting on seamless C++ interop in jank
May 02, 2025 · Jeaye Wilkerson

Howdy, folks! We're one month into me working on jank's seamless C++ interop and I have some exciting progress to share. This quarter's work is being sponsored not only by all of my individual Github sponsors, but also by Clojurists Together. Thank you for the support!

Seamless interop

Clojure's interop with Java isn't sold as being "seamless", but it really is. Using Clojure's existing syntax, we can create Java objects, access their members, call their methods, and there's no ceremony involved. This is a super power of Clojure and I think it's critical that each Clojure dialect reproduces it for its host. In fact, we've seen how this can impact the user experience, in earlier ClojureScript days. For jank, I want to do this right from the beginning.

However, jank's host is C++. How many languages can you name which have seamless C++ interop? Only Swift comes to mind. Even worse, doing this from a dynamically typed and JIT compiled language? This is new ground we're treading. I'll confidently say jank is the first Lisp to ever do this. So, one month in, what can jank do?

C++ values

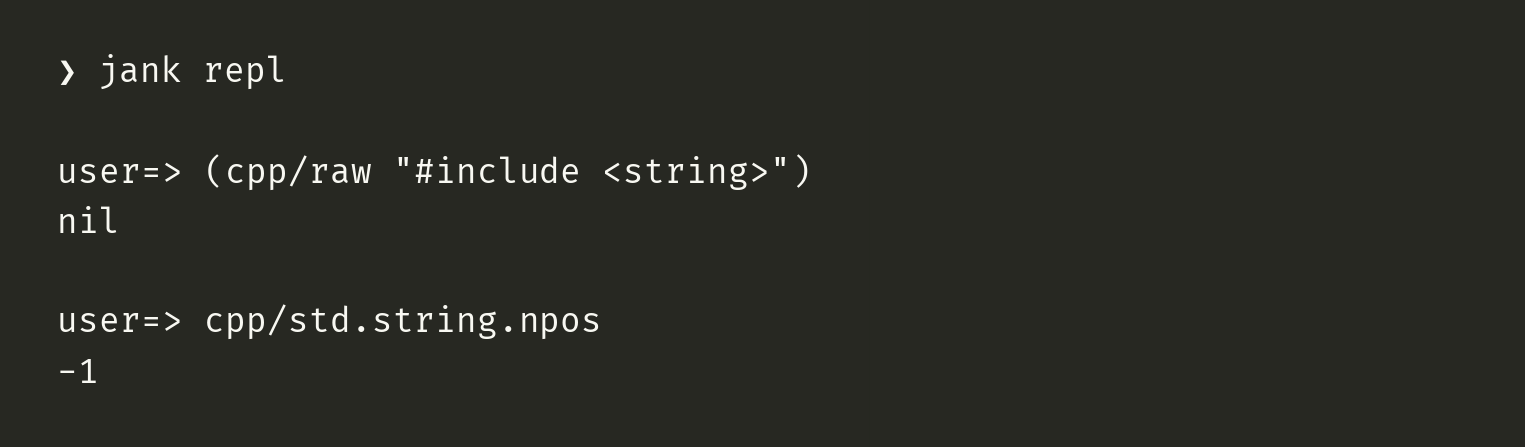

Let's start with a simple example. We'll say there's an existing global C++ value which we want to access.

The npos of C++'s string is used to represent the index of something which isn't present. Its value is -1, but since it's in an unsigned type, we get the largest possible value (all bits are 1). However, jank's integral type is an i64, so we end up keeping the signage.

Now, in order to access this from jank, we need to first include the C++ standard <string> header. We use cpp/raw for this, which allows us to globally issue C++ declarations. We can do this from anywhere and it will only affect the global C++ JIT compiler. jank also supports -I and -l CLI flags for locating headers and linking to libs, in case we want to use our own C++ libs.

Once we've included this header, we have access to all declarations and definitions within it. The next line, cpp/std.string.npos accesses the value std::string::npos. We use a . instead of :: here since the latter wouldn't be valid Clojure. Note, also, everything is still under the cpp/ namespace, which is a special namespace reserved for C++ interop in jank.

However, once we've accessed the value, we need to return it through the jank runtime so we can show the value in the REPL client. This is where some more magic happens. jank's runtime works with its own object model. There is a "base" object of sorts and then a bunch of typed objects. However, std::string::npos isn't one of those. It's just a size_t, which is a native unsigned long. jank has a conversion trait which can be specialized for any type, to provide conversions to/from jank's objects. By default, jank has some built-in type conversions already specialized.

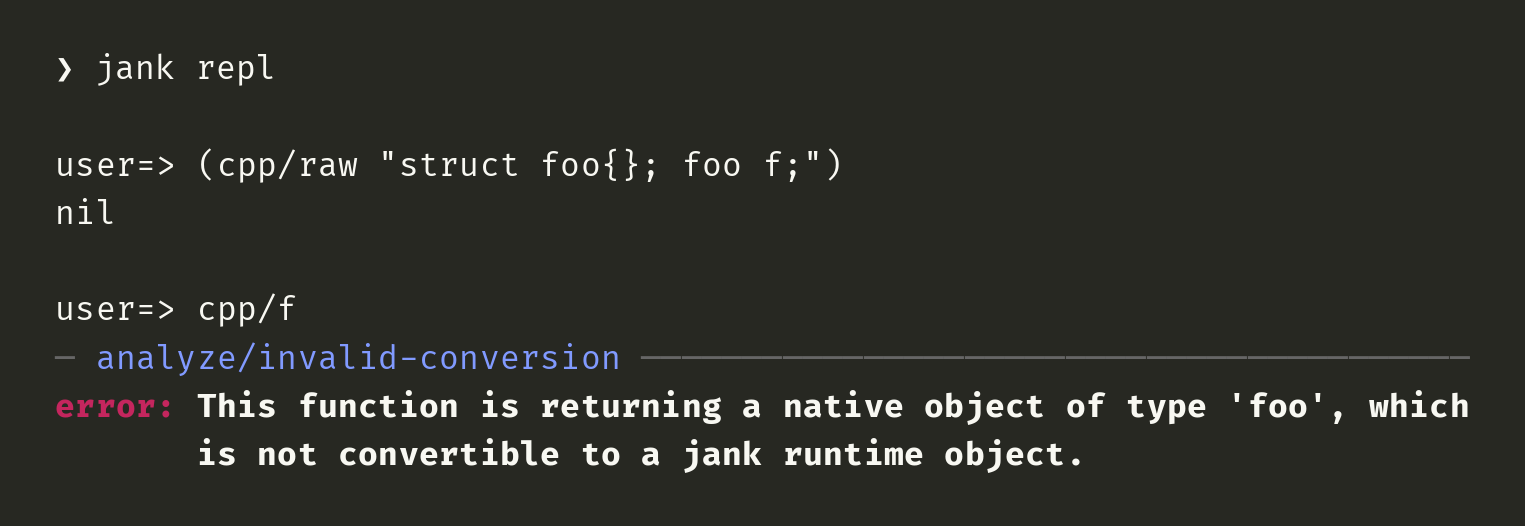

When the jank compiler sees we're trying to return a size_t, it'll try to JIT instantiate the jank::runtime::convert<size_t> template, to see if we have a valid conversion trait. If that instantiation fails, we get a compiler error. For example, there is no conversion for this foo type:

So, accessing a single value from the REPL is not as simple as it may seem. This is easier in Clojure, since both Clojure and Java share the same base Object. Since every class instance is an Object, we can freely pass any Java value through any Clojure function or store it in a Clojure data structure. In the native world, we don't have such niceties. Each top-level type is concretely separate. This means that, in order to cross function boundaries, conversions or type-erasure must be done.

Constructors

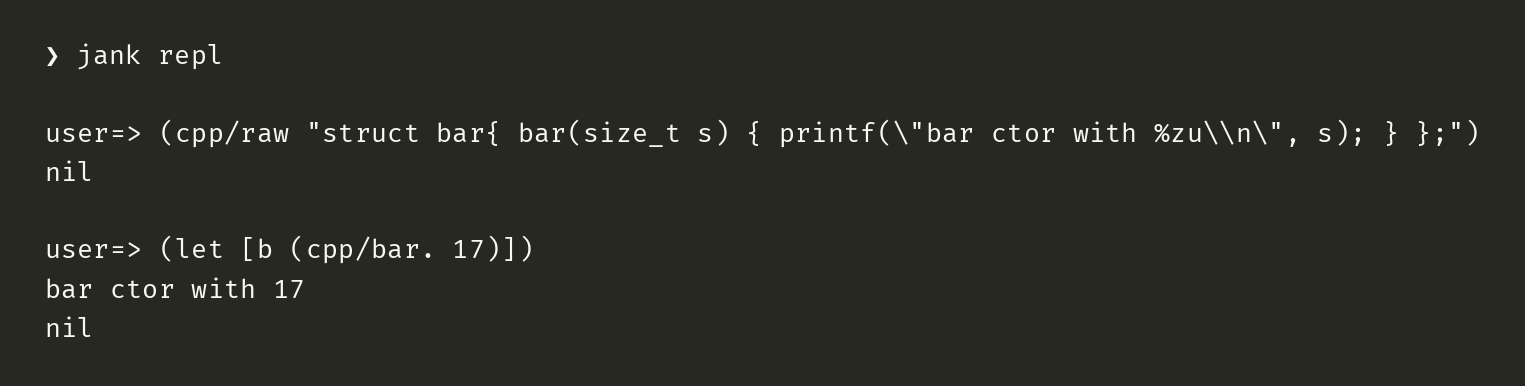

In jank, we can now construct stack-allocated C++ objects directly. There is no additional allocation, boxing, or conversions done by the jank compiler unless that value is returned from a jank function or passed as a parameter to a jank function.

In this case, there are three different constructor overloads for bar.

  • bar(bar const &) => The default copy constructor.
  • bar(bar &&) => The default move constructor.
  • bar(size_t) => Our user-defined constructor.

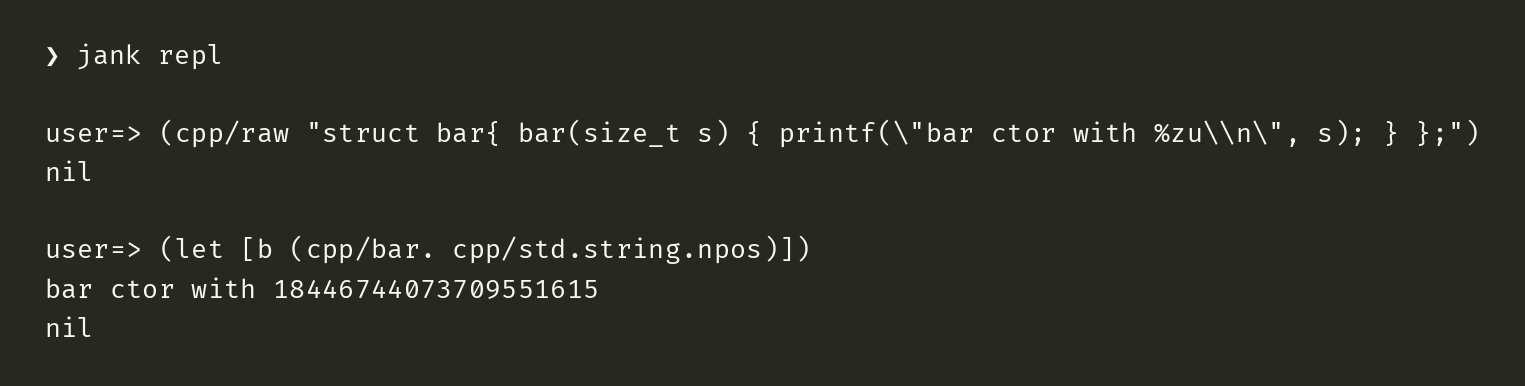

When we try to create b, we need to match the correct overload, given the arguments. jank will determine the argument types, find all of the overloads, and them ask Clang to find the best match. Clang will consider the argument types, implicit conversions, default arguments, etc. However, let's say we provide a jank value instead of std::string::npos.

In this case, 17 is a jank::runtime::object_ref. Clang will not find any matching constructor overload. Instead of giving up, jank will do a second pass, where it checks each argument type to see if an automatic jank conversion can happen. If multiple overloads can support a jank conversion for the same argument, we have an ambiguity and jank will fail. However, if we can narrow down a matching overload, jank will choose that and automatically do the conversions for us.

Casting

Finally, I've implemented casting so we can explicitly cast a value to another type. This works both as the equivalent of a C++ static_cast and also as a way of opting into jank's conversion trait. A helpful trick here is to cast in order to disambiguate an overloaded call. Let's consider this example. Note that I haven't actually built out the error messages for these yet, so it shows as an internal analysis error and the message itself is lacking helpful details. It's sufficient for me to know that the right error has been triggered, though.

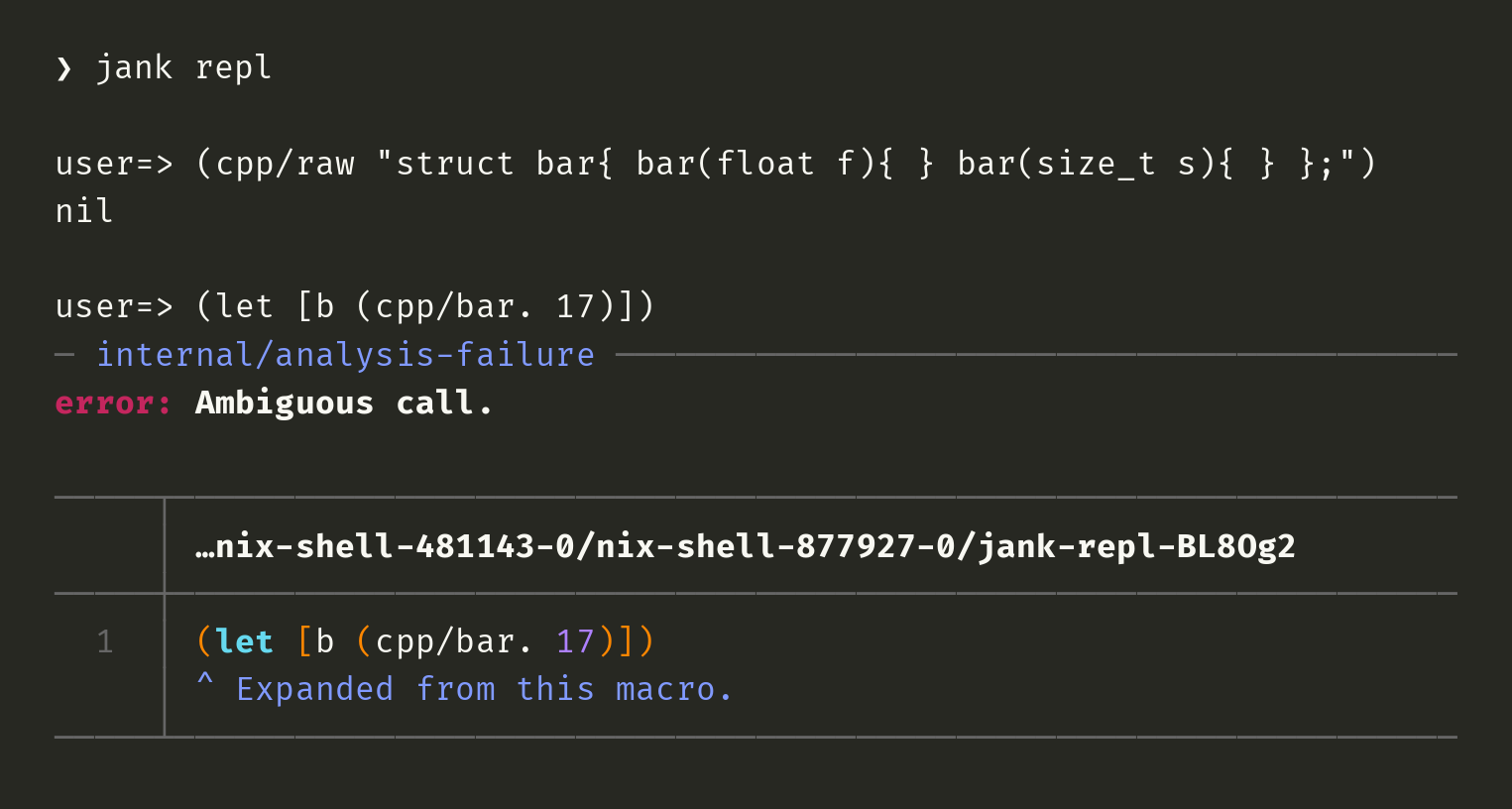

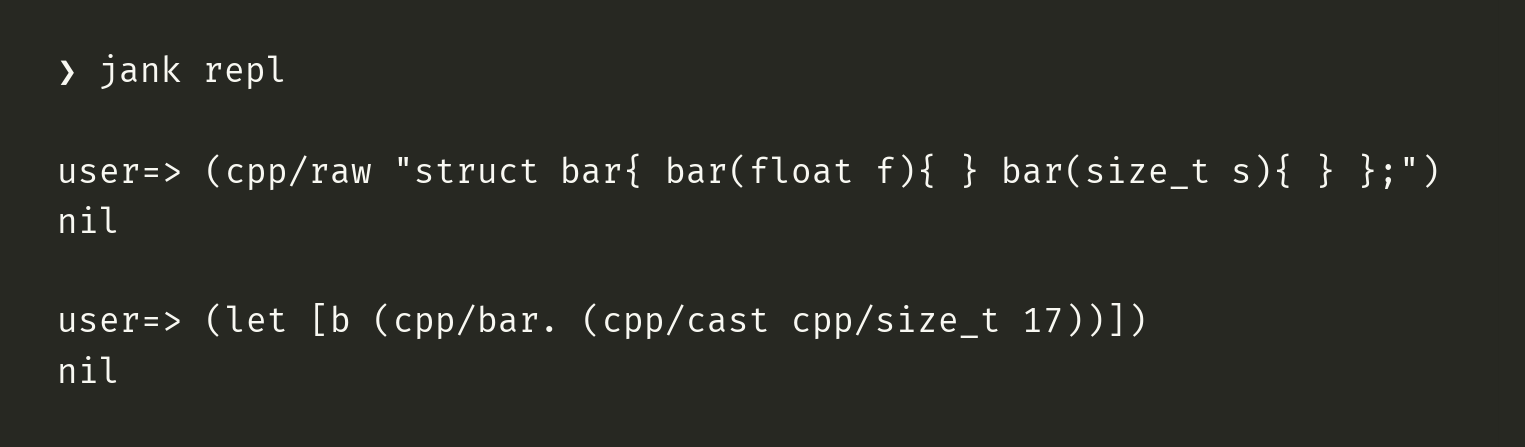

We can see that bar has two user-defined constructors. One takes a float and another takes a size_t. Both of those are already specialized for jank's conversion trait, so jank can't know which constructor to choose. Now, if we add a cast, we can clear up this ambiguity.

Interlude

Before I go into exactly how we're stitching together JIT compiled C++ code with jank's LLVM IR, please consider subscribing to jank's mailing list. This is going to be the best way to make sure you stay up to date with jank's releases, jank-related talks, workshops, and so on.

LLVM IR

Let's go back to our simple example of just evaluating cpp/std.string.npos from the terminal REPL client. The REPL client will automatically wrap many expressions we give it in a function, which is then JIT compiled, and immediately invoked. IIFE is the term for this. Since our C++ value is wrapped in a function, we end up with the implicit conversion being required, since the function is going to return our value. The function needs to:

  1. Look up the value from C++ land
  2. Convert the value into a jank object
  3. Return the value

Let's take these one at a time.

Looking up the value

Reaching into C++ requires an understanding of C++ structs, classes, templates, padding, alignment, and so much more. There's no way we can reasonably do all of that ourselves, so we rely on Clang to do it for us. To do this, we generate some C++ code at run-time and give it to Clang to JIT compile. To get our value, the C++ code will look something like this:

extern "C"
inline void jank_generated_helper_0(void *, int, void **, void *ret)
{ new (ret) size_t{ std::string::npos }; }

Ignore all of the parameters except for the last, for right now. When we call this function, we pass in a pointer to a buffer which is large enough to hold a size_t. The function then initializes that memory with the value held in std::string::npos. We can generate this knowing the type of std::string::npos ahead of time. Clang will compile this to a C function, which we can then call from our IR. We pass a pointer to a buffer rather than dealing with return values, since that's an ABI nightmare.

Given the C++ code above, Clang gives an IR function like this:

define linkonce_odr dso_local void @jank_generated_helper_0(
          ptr noundef %0,
          i32 noundef %1,
          ptr noundef %2,
          ptr noundef nonnull %3) #0 comdat {
  %5 = alloca ptr, align 8
  %6 = alloca i32, align 4
  %7 = alloca ptr, align 8
  %8 = alloca ptr, align 8
  store ptr %0, ptr %5, align 8
  store i32 %1, ptr %6, align 4
  store ptr %2, ptr %7, align 8
  store ptr %3, ptr %8, align 8
  %9 = load ptr, ptr %8, align 8
  store i64 -1, ptr %9, align 8
  ret void
}

There's a whole lot of hoopla and then ultimately a store i64 -1, ptr %9, which is really all we care about.

Given this helper, we can start building our own function to wrap our C++ value. We need to (stack) allocate space which is large enough to hold a size_t and then we can call our C++ helper in order to initialize the memory.

define ptr @clojure_core_cpp_value_7603_0() {
entry:
  %0 = alloca i8, i32 8, align 8
  call void @jank_generated_helper_0(ptr null, i32 0, ptr null, ptr %0)

Converting our value

This is a good start. After this, we'll have -1 in the allocated memory. Now, however, we need to convert this into a jank object. In order to do that, we'll generate another C++ helper. This one will do the necessary conversion using jank's trait. It'll look something like this:

extern "C"
inline void jank_generated_helper_1(void *, int, void **args, void *ret)
{
  auto const arg0{ *(size_t*)args[0] };
  new (ret) obj::integer_ref{ convert<size_t>::into_object(arg0) };
}

That'll generate into a rather large IR function which I'm not going to paste here. You'll see we end up using another of the parameters, though, which is our args. The args parameter is a pointer to an array of pointers to arguments. Again, when generating this C++ helper, we know the type that everything will be, so we can do some dirty casting from void* to get it there.

Now we can extend our IR function to call into this second helper.

define ptr @clojure_core_cpp_value_7603_0() {
entry:
  ; Store our -1 in %0.
  %0 = alloca i8, i32 8, align 8
  call void @jank_generated_helper_0(ptr null, i32 0, ptr null, ptr %0)

  ; Now convert our -1 into a jank object.
  %into_object.args = alloca [1 x ptr], align 8
  %"into_object.args[0]" = getelementptr inbounds [1 x ptr], ptr %into_object.args, i32 0, i32 0
  store ptr %0, ptr %"into_object.args[0]", align 8
  %into_object.ret_alloc = alloca i8, i32 8, align 8
  call void @jank_generated_helper_1(ptr null, i32 0, ptr %into_object.args, ptr %into_object.ret_alloc)
  %ret = load ptr, ptr %into_object.ret_alloc, align 8

I've tried to put some helpful names into the generated IR, to aid in reading. We can see here that we generate the args array for our call, we store %0 (our size_t which we read earlier) into the zeroth spot of the array, we allocate enough space for the return value, and then we call our second helper.

Returning our value

There's one last catch, though. The convert<size_t>::into_object function returns a typed jank object, which is obj::integer_ref. This is great for taking advantage of type information, but we're crossing jank function boundaries here, so everything needs to be a type-erased object_ref. We can do this by just shifting the pointer, if we know the offset to the base from obj::integer. Fortunately, jank will do this for us automatically when it detects that we need a type-erased object and we have a typed object. Our final IR function looks like this:

define ptr @clojure_core_cpp_value_7603_0() {
entry:
  ; Store our -1 in %0.
  %0 = alloca i8, i32 8, align 8
  call void @jank_generated_helper_0(ptr null, i32 0, ptr null, ptr %0)

  ; Now convert our -1 into a jank object.
  %into_object.args = alloca [1 x ptr], align 8
  %"into_object.args[0]" = getelementptr inbounds [1 x ptr], ptr %into_object.args, i32 0, i32 0
  store ptr %0, ptr %"into_object.args[0]", align 8
  %into_object.ret_alloc = alloca i8, i32 8, align 8
  call void @jank_generated_helper_0(ptr null, i32 0, ptr %into_object.args, ptr %into_object.ret_alloc)
  %ret = load ptr, ptr %into_object.ret_alloc, align 8

  ; Adjust the pointer to the base.
  %ret_base = getelementptr inbounds i8, ptr %ret, i32 8
  ret ptr %ret_base
}

This ends up being a lot of work for seemingly one line of jank code, but there's a great deal of magic going on behind the scenes. What's amazing, though, is that all of this gets completely optimized away. With -O2 settings on our IR optimizations, LLVM will turn our function into this:

define nonnull ptr @clojure_core_cpp_value_7603_0() {
entry:
  %0 = tail call ptr @_ZN4jank7runtime7convertImE11into_objectEm(i64 noundef -1)
  %ret_base = getelementptr inbounds i8, ptr %0, i64 8
  ret ptr %ret_base
}

The -1, which came from std::string::npos, was completely inlined. Then we just call our conversion function and shift our pointer to cast from obj::integer_ref to object_ref. Phew, that's it!

What's next?

We're one month into the quarter and I'm pleased with the progress so far. However, there's a lot remaining work to do. I still need to tackle free/static function calls, member access, member function calls, operators, dynamic allocations, complex type support, and automatic destructors for locals with the same guarantees C++ provides. On top of that, I need to make sure we can process C++ headers in a portable way. This will definitely keep me busy for the quarter! Stay tuned for my next update in a month.

Lastly, shout out to CppInterOp for shining light on how this sort of thing can be done and making it easier for me to do so.
